3-1/2in.FLG; 5-1/2in.B; 4-1/2in.T; 6-1/2in.H; EXTREME DUTY
K&N XD air filters use a Deep Pile Design, Extra Fine Weave Grade Cotton and alternate geometries for added efficiency and capacity for off-road conditions. This extra thick filtering medium provides the increased protection demanded by high dust conditions while continuing to provide the performance necessary to stay in the front of the pack. The XD Cotton medium was developed for the extreme conditions encountered by race teams in the Baja 1000. This real world testing is combined with testing performed at K&N's own Dust Retention Laboratory in conformity with the ISO 5011 test protocol. XD Cotton Air filters can be cleaned in the same way as K&N's original cotton air filters.
- Designed To Increase Horsepower And Acceleration
- High Air Flow With Excellent Filtration
- Clamp-On Washable and Reusable Air Filter
- Malleable Flanges
- One Year Limited Warranty
Information:
Fits A Wide Variety Of Applications; Strong Pliable Rubber Flanges; Absorb Vibrations; Allow For Secure Attachment; Can Stretch Up To 0.0625 in.
Application Summary:
| Year |
Make/Model |
| 2009-2014 |
Acura TSX |
| 2017 |
Honda Accord |
| 2017-2019 |
Subaru BRZ |
| 2017-2019 |
Toyota 86 |
| Attributes |

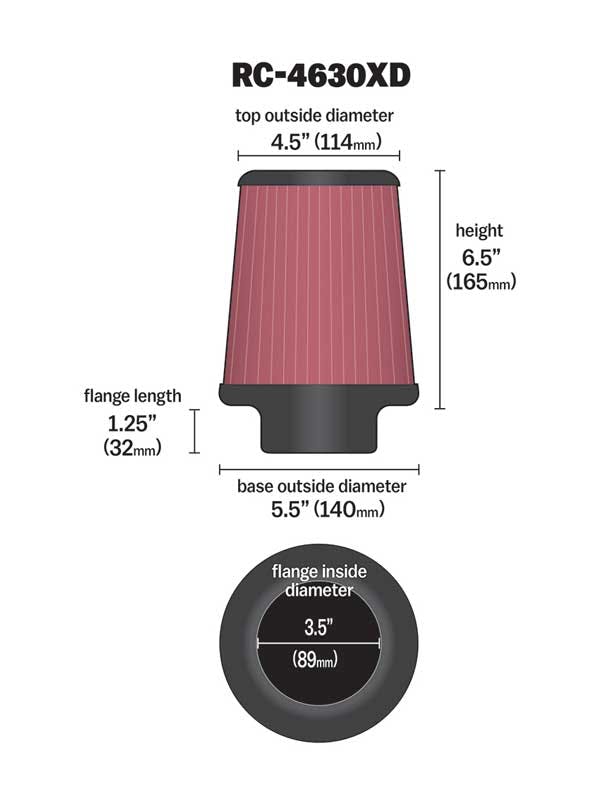

| Air Filter Large End Diameter |
5.500 in. (140mm) |
| Air Filter Shape |
Round Tapered |
| ASIN |
B002EIE28M |
| Automotive Item Grade |
High Performance |
| Base Outside Diameter |
5.500 in. (140mm) |
| California Proposition 65 |
Yes |
| Carb/Air Horn Dia. (in.) |
3.5 |
| CARB/Air Horn Diameter |
3.500 in. |
| CARB/Air Horn Diameter (in.) |
3.500 in. |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
1.4 oz (41 ml) |
| Flange Angle |
0 Degree |
| Flange Inside Diameter |
3.500 in. (89mm) |
| Flange Length |
1.25 in. (32mm) |
| Flange Offset |
0.000 in. (0mm) |
| Flange Type |
Centered |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
6.5 in (165 mm) |
| Height (in.) |
6.50 in. (165mm) |
| Item Height |
6.500 in. (165mm) |
| Item Type |
High Performance |
| Item Weight |
1.300 lbs. (0.6 kg) |
| Life Cycle Status Code |
Discontinued |
| Machine Washable |
Yes |
| Material |
Rubber Base |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Filter Is Pre-Oiled |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
11 in (279 mm), 11.000 in. (279mm) |
| Product Box Length |
6.38 in (162 mm), 6.380 in. (162mm) |
| Product Box Width |
6.38 in (162 mm), 6.380 in. (162mm) |
| Product Style |
Round Tapered Universal Air Filter |
| SDR Required Flag |
N |
| Shape |
Round Tapered |
| Top Material |
Chrome |
| Top Material/Finish |
Chrome |
| Top Outside Diameter |
4.500 in. (114mm) |
| Top Style |
Metal |
| Warranty |
12 Months |
| Warranty Time |
12 |
| Washable |
Yes |
| Weight |
1.3 lb (0.6 kg) |
| GTIN |
00024844246295 |
