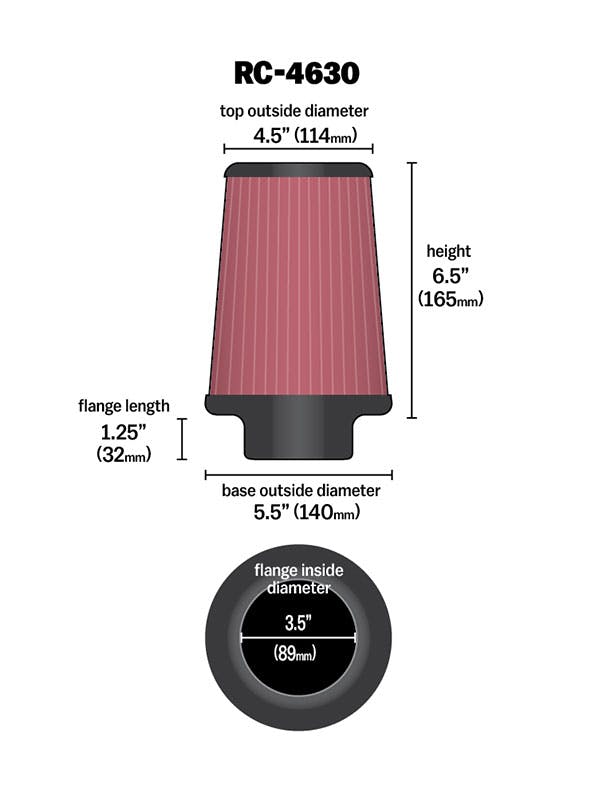

3-1/2in.FLG; 5-1/2in.B; 4-1/2in.T; 6-1/2in.H
K&N's Universal Air Filters are designed and manufactured for a wide variety of applications including racing vehicles, radio-controlled cars, generators, snowmobiles, tractors, and other applications. Regardless of the angle or offset diameter of the air intake, there is probably a K&N Universal air filter for your equipment. All filters are constructed with ultra-strong molded pliable rubber flanges which absorb vibration and allow for secure attachment and can also be stretched for up to 1/16 of an inch (1.5mm) to fit in-between sizes. K&N universal air filters are washable and reusable.
- Designed To Increase Horsepower And Acceleration
- High Air Flow With Excellent Filtration
- Clamp-On Washable and Reusable Air Filter
- Malleable Flanges
- One Year Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2008-2012 |
Scion xD |
| Attributes |
| Air Filter Large End Diameter |
5.500 in. (140mm) |
| Air Filter Shape |
Round Tapered |
| ASIN |
B00029WZ0C |
| Automotive Item Grade |
High Performance |
| Base Outside Diameter |
5.500 in. (140mm) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Cap Outside Diameter |
OEM |
| Color |
Heather Red |
| Country of Origin (Primary) |
US |
| Diameter Inside (in.) |
3.5 |
| Diameter Outside (in.) |
5.5 |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
1.45 oz (43 ml) |
| Filter Style |
Washable |
| Flange Angle |
0 Degree |
| Flange Inside Diameter |
3.500 in. (89mm) |
| Flange Length |
1.25 in. (32mm) |
| Flange Offset |
0.000 in. (0mm) |
| Flange Type |
Centered |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
6.5 in (165 mm) |
| Height (in.) |
6.50 in. (165mm) |
| Inside Diameter |
3.500 in. |
| Item Height |
6.500 in. (165mm) |
| Item Type |
High Performance |
| Item Weight |
1.300 lbs. (0.6 kg) |
| Life Cycle Status Code |
Discontinued |
| Machine Washable |
Yes |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Filter Is Pre-Oiled |
| Outside Diameter |
5.500 in. |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
11 in (279 mm), 11.000 in. (279mm) |
| Product Box Length |
6.38 in (162 mm), 6.380 in. (162mm) |
| Product Box Width |
6.38 in (162 mm), 6.380 in. (162mm) |
| Product Style |
Round Tapered Universal Air Filter |
| SDR Required Flag |
N |
| Shape |
Round Tapered |
| Top Material |
Chrome |
| Top Material/Finish |
Chrome |
| Top Outside Diameter |
4.500 in. (114mm) |
| Top Style |
Metal |
| Warranty |
12 Months |
| Warranty Time |
12 |
| Washable |
Yes |
| Weight |
1.3 lb (0.6 kg) |
| GTIN |
00024844085511 |
